Bond Strength and Failure Modes of Fiber Versus Resin-based Posts with Different Lengths in Endodontically Treated Premolars: An In Vitro Study

1. INTRODUCTION

Restoring teeth that have undergone endodontic treatment has significant clinical challenges due to the loss of tooth structure, which jeopardizes tooth retention and coronal restoration stability [1, 2]. When substantial coronal structure is missing, post-and-core systems are routinely used to provide adequate retention for the final prosthesis [3, 4]. Fiber-Reinforced Composite (FRC) posts are broadly accepted due to their favorable mechanical properties and dentin-like elasticity [5–7]. These characteristics enable stress distribution, thus helping reduce the risk of root fracture [8, 9]. A recent systematic review found that fiber posts offer superior retention and a lower fracture risk compared to metal posts [10].

Recently, interest has evolved in replacing posts with core build-up materials, particularly dual-cure composite resins such as Core-X^® Flow (Dentsply DeTrey, Konstanz, Germany) [11, 12]. For all-resin posts, a dual-cure core build-up material, such as Core-X Flow, is immediately poured into the post space, resulting in the formation of a chemical “monoblock” with the core build-up [13]. This method minimizes extensive preparation of the post space, thereby preserving more of the remaining tooth structure [14]. However, limited researchs are conducted to evaluate the pull-out bond strength of these materials when used as posts, despite being a critical factor for the long-term success of post-retained restorations [15, 16]. Although longer posts are associated with better retention, their effectiveness when replaced with resin-based alternatives such as Core-X^® Flow remains unclear. Furthermore, studies on resin pins have suggested that conservative short retentive elements may provide sufficient stability. This rationale supports investigating shorter resin post lengths, such as 5 mm resin-based posts, as an option for minimally invasive procedures in specific cases with limited root length or narrow canals. Understanding the mode of failure is also important. Recent literature revealed that these patterns are not solely influenced by post retention, but by a variety of other factors such as stress distribution, post material, and residual dentin thickness. Consequently, high retention post systems may still have unfavorable fractures [15].

Therefore, the current study aimed to evaluate the influence of post length and material on both pull-out bond strength and failure mode in single-rooted, endodontically treated premolars. Specifically, it compared the retention performance of different post materials: fiber posts and all resin. Within the group of all resin posts, the post lengths at 5mm and 10 mm were compared to assess their effect on retention and failure mode. Findings are expected to provide evidence-based guidance for clinicians in optimizing post-selection for conservative restorative treatments.

2. MATERIAL AND METHODS

This experimental in vitro study was conducted in accordance with the principles of the Declaration of Helsinki for research involving human tissue. It was approved by the Research Ethics Committee at the Faculty of Dentistry, King Abdulaziz University, Jeddah, Saudi Arabia (Approval No. 124-11-24). The objective was to assess the influence of post length and material on retention in root canal–treated teeth.

Sixty single-rooted premolars were collected from the Department of Oral and Maxillofacial Surgery at KAUFD, as well as from local dental clinics and hospitals. Teeth were included if they were intact, free of cracks or fractures, and extracted for therapeutic reasons (orthodontic or periodontal). Each tooth was examined under magnification and transillumination to confirm the absence of caries and previous restorations. Only teeth from systemically healthy donors without infectious diseases were used.

Teeth were utilized within one month of extraction. For preservation, they were rinsed and stored in normal saline until use. Exclusion criteria included root caries, severe curvature, or any evidence of resorption in order to minimize confounding variables.

Sample size was calculated using G*Power software to achieve a statistical power of 80%, with a significance level of 0.05 and an anticipated effect size of 0.40. To ensure randomization and reduce potential bias, the specimens were allocated into three groups (n = 20 each) using Random Allocation Software (version 2.0). All experimental procedures were carried out at the Advanced Technology Dental Research Laboratory, Faculty of Dentistry, King Abdulaziz University, between November 2024 and April 2025.

2.2. Restorative Protocol and Sample Grouping

After completion of endodontic treatment, crown preparation was performed on all specimens using medium-grit diamond burs, ensuring preservation of a 2 mm ferrule [22]. Following post-space preparation, all teeth were etched with 37% phosphoric acid and bonded with Single Bond Plus Adhesive (3M™ Adper™) [23].

• Group A: A 10 mm fiber post (RelyX Yellow Fiber Post, 1.3 mm, 3M ESPE, USA) was cemented with Core-X^® Flow (Dentsply DeTrey, Konstanz, Germany), which also served as the core build-up material [24].
• Group B: The post space was filled directly with Core-X^® Flow to a depth of 10 mm, without the placement of a fiber post [13].
• Group C: The post space was filled with Core-X^® Flow to a depth of 5 mm [13].

In all groups, a stainless steel orthodontic wire was vertically inserted into the resin during the core build-up procedure before curing (Fig. 1). Polymerization was carried out using an LED curing unit, securing integration of the wire within the composite for subsequent mechanical testing (Fig. 2A).

2.3. Mechanical Testing Procedure

Retention strength was assessed using a universal testing machine (Instron 5944, Canton, MA, USA). Each specimen was positioned vertically, and the embedded stainless-steel orthodontic wire was secured to the upper holding unit of the device (Fig. 2B).

A vertical tensile force was applied at a crosshead speed of 0.5 mm/s until failure occurred, which was confirmed by an audible signal from the machine and separation of the post-and-core assembly. The maximum force at failure was recorded in Newtons (N).

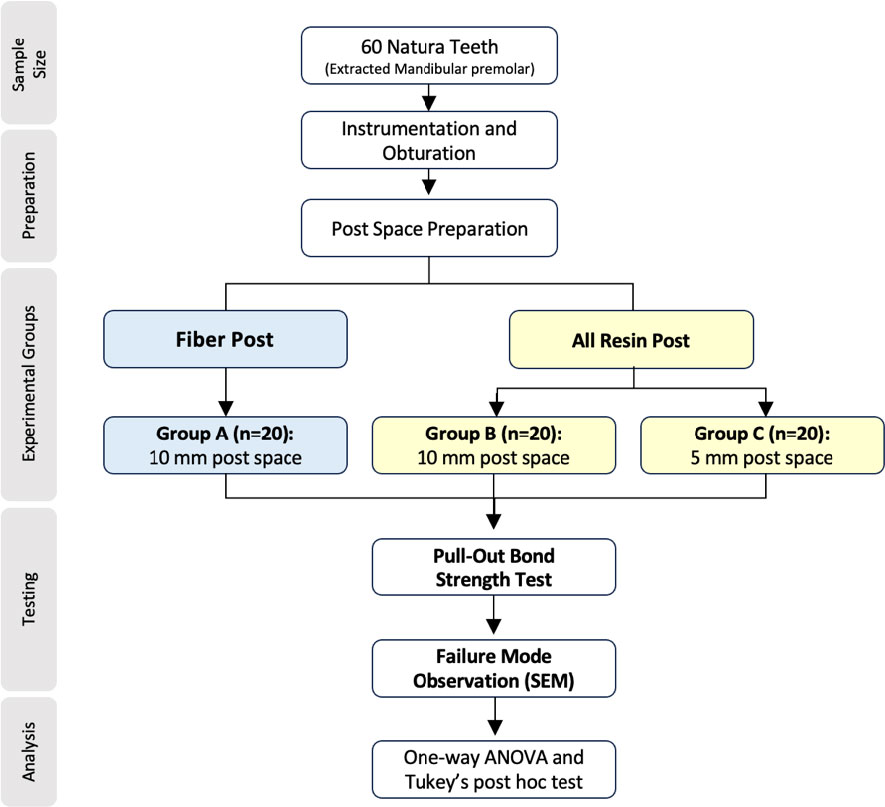

All tests were performed under controlled laboratory conditions. To minimize variability and operator bias, standardized procedures were followed by trained personnel. A flowchart summarizing the experimental steps is provided in Fig. (3).

2.4. Instrumentation and Measurement

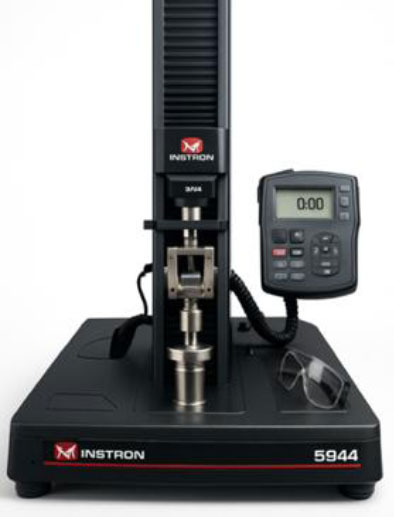

This investigation employed a universal testing machine (Instron 5944) (Fig. 4), calibrated before testing to ensure accurate measurement of tensile forces up to 2 kilonewtons (kN). This calibration confirmed data stability and enabled precise assessment of retention strength across the different post configurations.

The dependent variable was retention strength, evaluated with the pull-out test, while the independent variables were post type and post length. To minimize operator bias, all procedures were standardized, random allocation was used for group assignments, and all measurements were performed by trained personnel to maintain consistency and reliability.

3. RESULTS

Sixty samples were evaluated and categorized into three groups according to post type and length. Pull-out bond strength was measured for each group, and the mean retention strength was calculated.

3.1. Pull-out Bond Strength

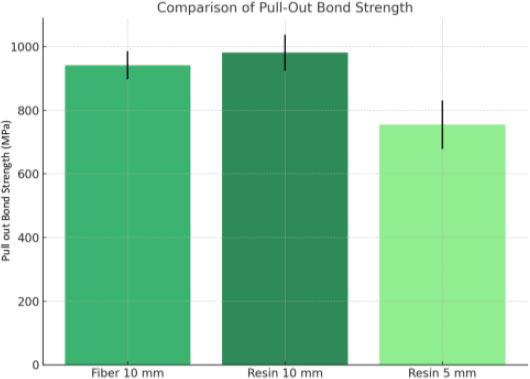

Group A (10 mm fiber post) exhibited a mean pull-out bond strength of 942.9 ± 41.38 N. Group B (10 mm resin-based post) demonstrated the highest mean value of 978.6 ± 56.63 N, while Group C (5 mm resin-based post) showed the lowest mean value of 758.6 ± 73.82 N. These findings are summarized in (Table 1).

Table 1.

Group	Mean Pull-out Strength (N)	Standard Deviation (SD)	95% Confidence Interval (N)
Group A	942.9	41.38	(917.92, 967.93)
Group B	978.6	56.63	(944.4, 1012.83)
Group C	758.6	73.82	(714.01, 803.22)

A one-way Analysis of Variance (ANOVA) revealed a statistically significant difference in retention strength among the groups (p = 0.024). Tukey’s Honestly Significant Difference (HSD) post-hoc test showed no significant difference between Groups A and B (p > 0.05). However, significant differences were found between Groups A and C and between Groups B and C (p < 0.05). These findings are summarized in Fig. (5).

3.2. Summary

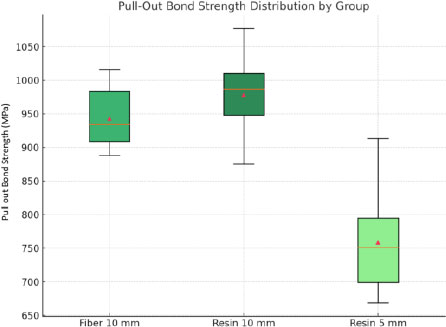

Overall, the 10 mm resin-based posts (Group B) had the highest mean pull-out bond strength, followed by the 10 mm fiber posts (Group A), while the 5 mm resin-based posts (Group C) had the lowest strength among the tested groups. Significant differences were observed between Groups B and C, and between Groups A and C, as presented in Fig. (8) as a box plot of retention strength. The predominant and secondary failure modes identified after pull-out testing for each experimental group are summarized in (Table 2).

Table 2.

Group	Predominant Failure Mode	Secondary Failure Modes	Overall Failure Nature
Group A (Fiber post – 10 mm)	Root dentin fracture	Adhesive, mixed	More unfavorable
Group B (Resin-based post – 10 mm)	Adhesive debonding	Cohesive, mixed	Predominantly favorable
Group C (Resin-based post – 5 mm)	Adhesive debonding	Mixed	Predominantly favorable

4. DISCUSSION

In the rehabilitation of Root Canal–Treated (RCT) teeth, post-and-core systems are frequently required to restore structural integrity and facilitate restorative procedures [25, 3]. Considering the high prevalence of RCTs and posts in durable outcomes, this topic remains clinically relevant [14]. Despite the variety of available post materials, including fiber, metal, and resin-based, there is no consensus on the optimal material and length [26, 12]. Previous studies have examined material properties and retention, yet the relationship between post length and bonding capacity, particularly when comparing resin-based and fiber posts, is not fully resolved [1]. This study addresses the gap by comparing resin-based and fiber posts at two different lengths (10 mm vs 5 mm).

A 5 mm post length was selected based on clinical guidelines suggesting that post length should be equal to or slightly greater than the clinical crown height to ensure proper retention and resistance form. Based on an average clinical crown (with ferrule and ceramic clearance) of approximately 4–5 mm, a 5 mm post length is considered the minimal acceptable threshold of post length when used in constrained anatomical cases [27]. Although resistance form was not directly tested in this study, pull-out bond strength was used as a surrogate indication for post retention under tensile loading conditions. The novelty lies in evaluating material and length under controlled in vitro conditions to isolate their effects on pull-out bond strength. Our methodology followed established principles: pull-out testing with a universal testing machine (Instron) provides consistent force application approximating clinical mechanical stresses [28], and the in vitro model allowed systematic control over different variables [29]. Furthermore, the use of human premolars enhances the clinical applicability [30].

The 10 mm resin-based posts exhibited the highest pull-out bond strength, followed by fiber posts with 10 mm length, while 5 mm resin-based posts showed the lowest retention. These findings reflect the increased bonded surface area associated with longer posts, supporting adhesive principles and aligning with prior studies stating that long posts enhance mechanical retention [30, 31]. To increase the bonded surface area without weakening the root, the remaining dentin thickness should be maintained at least 1 mm, and the preparation should not exceed a third of the root diameter [32]. This supported by a recent FEA finding that indicated maintaining 1 mm thickness of radicular dentin is more critical than post material [33]. Sun et al. further established that excessive canal enlargement leads to more stress in the cervical area and post-apex, thereby increasing the fracture risk [34].

Fiber posts have slightly lower values compared to resin-based posts of the same length; this may be attributed to material-specific bonding behavior. Fiber posts provide better stress distribution due to their dentin-like elastic modulus [25], but the resin-based posts benefit from the chemical continuity with the resin cement to form direct resin-to-resin bonding [9, 12, 26]. Due to their favorable biomechanical performance, fiber post systems are widely used due to their favorable biomechanical properties, but their bonding performance under various clinical conditions has not been questioned [35]. Boschian Pest et al. (2002) observed reduced bond strengths of fiber posts when chemical adhesion to dentin was limited, emphasizing the importance of achieving strong adhesive interfaces in post retention [24]. Despite their marginally lower retention, fiber posts remain clinically useful in reducing catastrophic root fractures through favorable stress distribution [8, 25]. The sharp drop in the retention observed in the 5 mm resin-based group reinforces the critical influence of post length, which is consistent with previous findings [1, 5, 11].

Pull-out bond strength is considered an important indicator for post retention, but it does not necessarily predict the mode of failure. Therefore, evaluating failure mode in addition to retention becomes the key factor for post-system evaluation [15]. The failure mode is significantly affected by the post space diameter more than the length, as shown in previous studies. Increased post length may result in increased fracture risk when the remaining dentin thickness is not preserved [36, 37].

Failure mode analysis revealed adhesive, cohesive, and mixed failures across all groups, consistent with previous studies using similar pull-out or push-out testing methods [5, 28, 38]. Group A (10 mm fiber) exhibited a slightly higher frequency of unfavorable failures, including fractures extending to the cemento-enamel junction, although no statistically significant differences in failure distribution were detected among groups. Favorable or repairable failures were most frequent in shorter post groups, possibly due to lower retention values and reduced stress concentration within root dentin [11, 14]. These findings align with previous evidence that post geometry, bonding effectiveness, and restorative integrity collectively have an impact on failure behavior [8, 25, 31]. In contrast, Marinescu et al. reported that deeper fiber posts placed into the root canal (7 mm) have slightly higher fracture resistance than shorter lengths (5 mm) [39]. Potential differences between the studies may arise from different methodologies and different factors affecting the failure mode, like the post material. Overall, despite differences in retention values, the tested groups produced comparable failure patterns under in vitro loading conditions.

Within the limits of this study, both post length and material influenced retention outcomes. The superior pull-out performance of 10 mm resin-based posts suggests that, when adequate length is achievable, they may provide strong bonding due to direct resin-to-resin continuity [12, 26]. Nevertheless, fiber posts remain the preferred clinical option in many situations because of their favorable stress distribution and lower risk of catastrophic root fractures [8, 25, 31]. Clinicians should therefore consider both retention capacity and fracture behavior when selecting post systems, prioritizing fiber posts in cases where preservation of root integrity is essential, while reserving resin-based posts for situations where maximum bonding capacity can be achieved without compromising root structure.

As an in vitro investigation, this study does not fully replicate the complexities of the clinical environment. Important variables such as thermal cycling, fatigue loading, and occlusal stresses were not simulated, which may influence long-term bonding and fracture outcomes. Only single-rooted premolars were tested, limiting the generalizability of results to teeth with more complex anatomies. In addition, a single pull-out protocol was applied, whereas different loading modes may produce variable results [5, 28, 38]. Future studies should incorporate cyclic fatigue, thermal aging, and dynamic loading to approximate clinical conditions more closely, as well as assess the impact of cement film thickness, alternative post geometries, and different cementation techniques [15, 31].

CONCLUSION

Within the limitations of this in vitro study, post length was found to significantly influence pull-out bond strength in endodontically treated premolars. The 10 mm resin-based posts exhibited retention comparable to that of 10 mm fiber posts, suggesting that they can serve as a conservative alternative to prefabricated fiber posts. Shorter 5 mm resin-based posts exhibited reduced retention, suggesting that they may be insufficient in cases where high mechanical stability is required. Regarding failure mode, fiber posts showed a higher frequency of unfavorable failure modes compared with all-resin posts. These findings reinforce the importance of optimizing post length to enhance retention while minimizing sound radicular dentin removal. Future clinical studies are recommended to validate these in vitro results under functional and aging conditions.
